Rapid Non-Destructive Testing

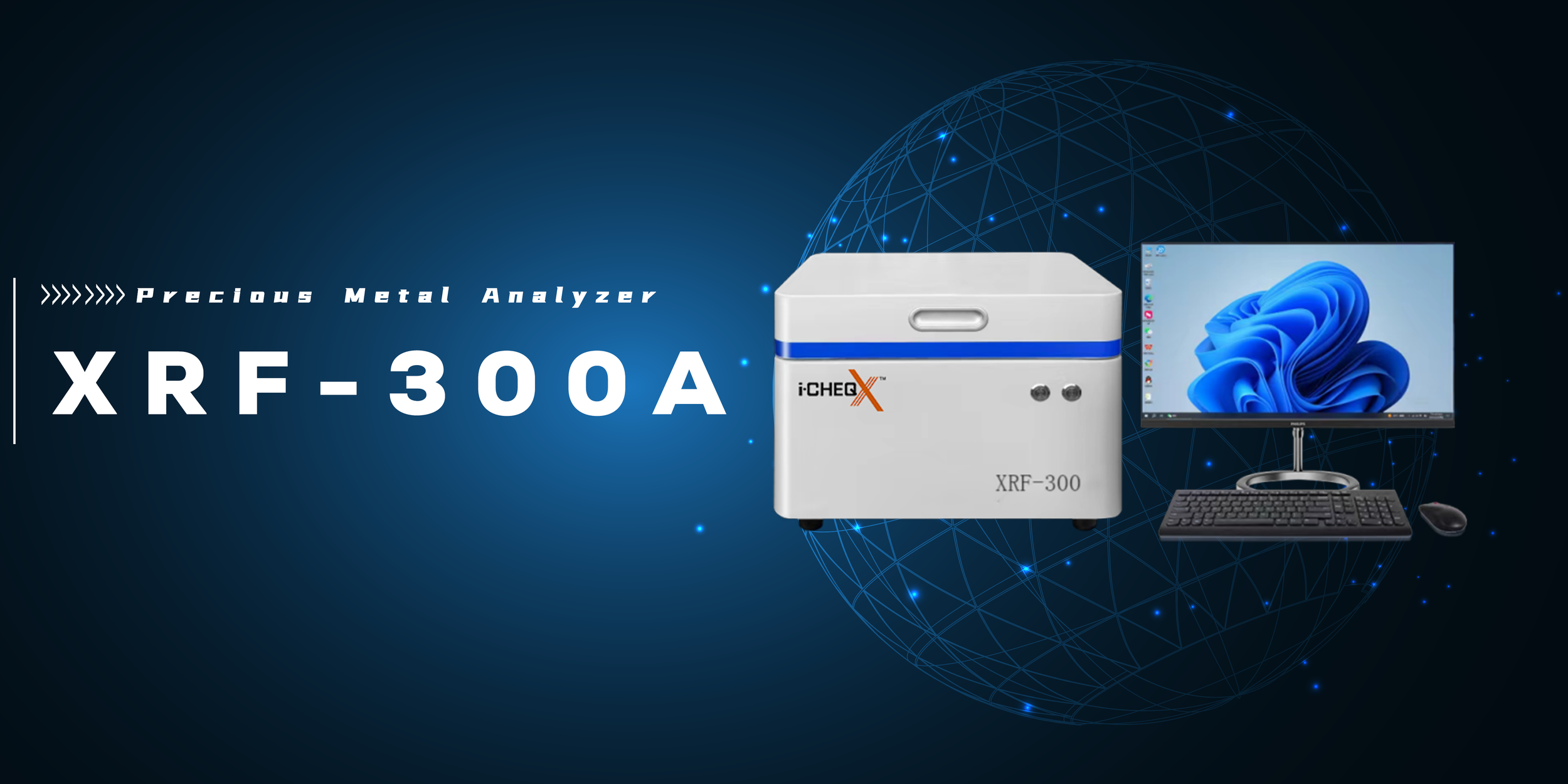

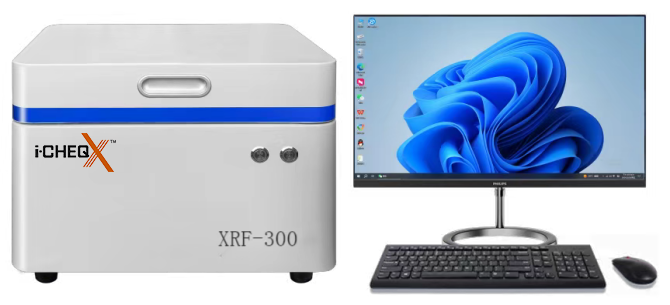

XRF-300A

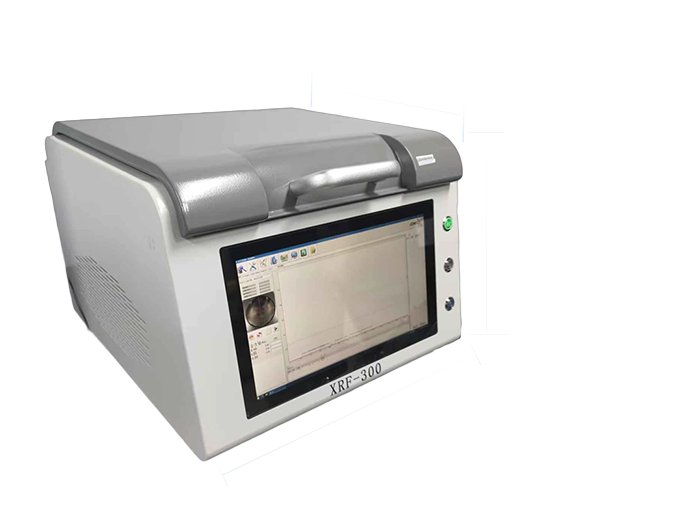

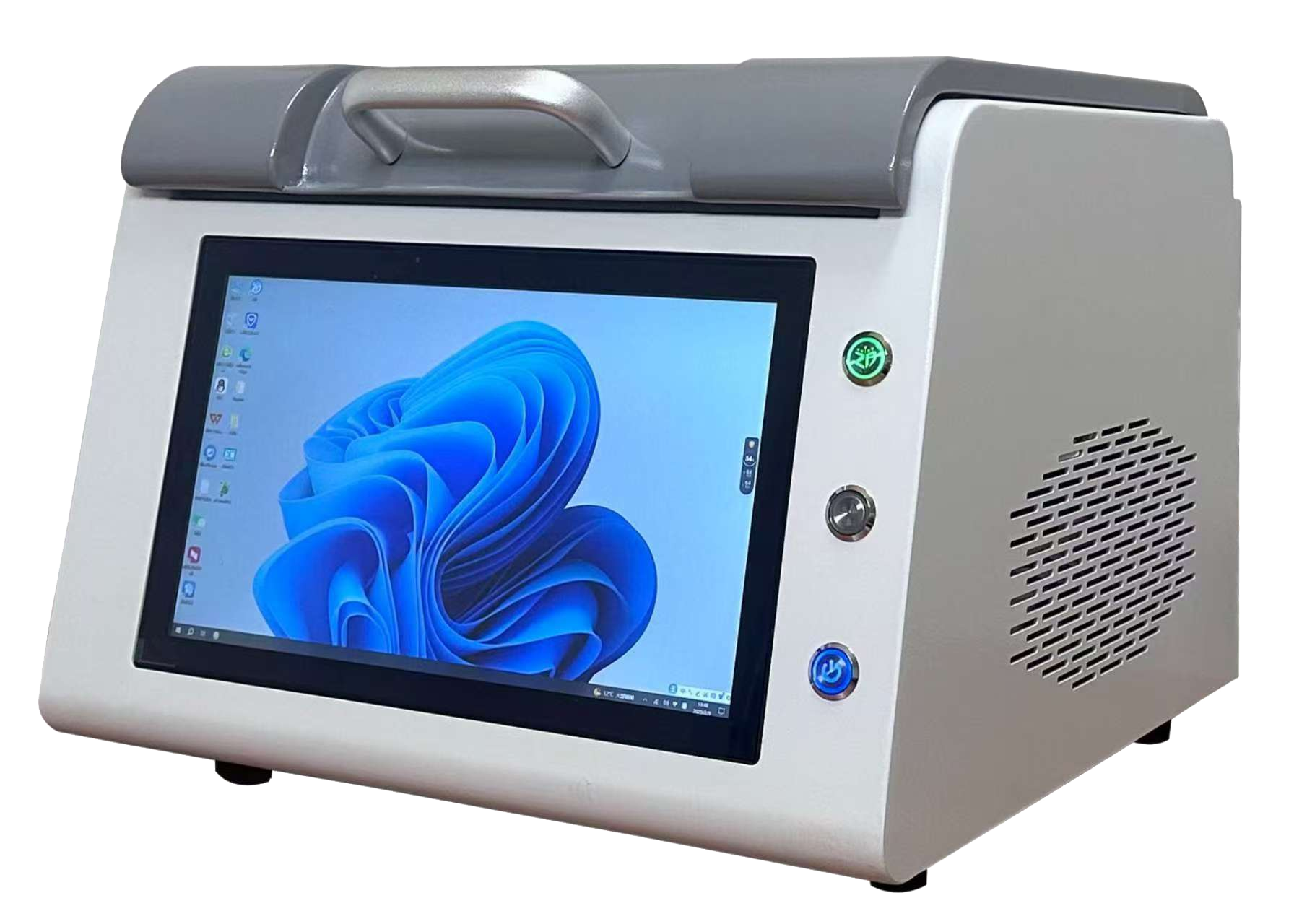

XRF-300S

· Smart Panel

· Multipurpose

· Simple and efficient

· HD lens

· High-Transmission Optical Filter

· High precision

· Worry-free after-sales

Product Information

XRF-300S

XRF-300A


      Technical Parameters
      Details

      Analysis Range
      1ppm to 99.99%

      Measurement Accuracy
      RSD ≤ 0.08% (When Au≥99.99%)

      Test Form
      Solid, Powder, Liquid

      Tube Voltage
      5KV - 50KV

      High Voltage Power Supply
      0 - 50KV

      Tube Current
      0μA - 1000μA

      Camera
      High-Definition Camera

      Detector
      Sipin Detector

      Multi-Channel Analyzer
      Multi-Channel Digital

      Sample Chamber Size
      400×300×100 (mm)

      Test Time
      10sec - 1000sec

      Measured Elements
      Gold, Silver, Platinum, Palladium, Rhodium, Iridium, Osmium, Nickel, Copper, Iron, Zinc, Tin, Tungsten, Molybdenum, Titanium, Manganese, Chromium, etc.

      Analysis Software
      ZHONGDA Qualitative and Quantitative Analysis Software

      External Dimensions
      400×300×300 (mm)

      Weight
      25Kg

      Ambient Temperature
      -5℃ - 40℃, Relative Humidity 15% - 90%

      Power Supply Requirements
      AC 220V±5V, 50/60HZ, No high-power electromagnetic interference sources nearby

      Technical Features
      Entry-level full-element spectrum spectrometer, CE certified by the EU, suitable for pawnshops, jewelry retail stores, jewelry education institutions, jewelry processing factories, small and medium-sized gold recycling stores
