Gen 3 Handheld XRF

Gen 3 Handheld XRF

A handheld infrared thermometer gun placed on a black circular pedestal.

The GEN 3 is our latest model featuring out latest UI, instrumentation, battery design and safety features

This is the ideal solution for handheld XRF spectrometry in 2025

SMART & CONVENIENT

  • 1-click startup and detection greatly simplify the operation process

  • Intelligent EN and CH display, supports more languages upon request

  • 5.5-inch hi-res capacitive touch screen, auto-adjusting brightness, ensuring clear display in any environment.

  • Customizable automatic shutdown on idle- greatly extending battery life

PRECISE & SPEEDY

  • Intel quad-core processor, with 256GB SSD and 4GB LPDDR memory, ensures smooth operation of the system, powerful data processing capabilities

  • Windows 10 provides a familiar and proven operating system

  • Large-capacity swappable battery enough for the entire work day. Extra batteries already included.

SAFE & RUGGED

  • X-Ray radiation safe. User is protected by multiple safeguards.

  • Lightweight aluminum alloy and nylon reinforced polymer construction, designed for rugged outdoor use

  • IP54 dust and water resistance

SMARTPHONE INTEGRATED

  • Can link to smartphone GPS for location tagging

  • Wi-Fi connectivity

  • i-CheqX cloud database support available for convenient centralized data storage

  • Lifetime software update support


TECHNICAL SPECIFICATIONS

PHYSICAL

WEIGHT: 1.5kg battery included

BATTERY: 10200 mA

DIMENSIONS: 245mm x 86mm x 310mm

BATTERY LIFE: 6 hours

BATTERY CHARGE TIME: 5 hours

SAMPLE PROCESSING TIME: 3 to 5 seconds

WATER & DUST RESISTANCE: IP65 (electrical enclosure is dust tight and watertight against light pressure water spray)

BATTERY CHARGER PLUG TYPE: Type A (USA, China, Japan, Canada, Mexico and more)

OPERATIONAL

TARGET MATERIALS: Gold (Au), Silver (Ag), Tungsten (W), Tantalum (Ta), Lead (Pb)

OPERATING MODES: Alloy analysis | Ore analysis | Soil analysis | RoHS verification

VOLTAGE: Automatically adjusts between 35 to 50 kv

FILTER: Automatically adjusts based on sample material

DETECTOR: High-sensitivity Si-Pin/SDD detector; (resolution ≦180eV)

DETECTOR COOLING: Peltier effect semiconductor cooling, cooling temperature -35℃

STANDARD FILM: External 316 standard film/window protection cover

DISPLAY SCREEN: Screen resolution: 720x1280 | Screen size: 5.5-in. | Touch capacitive | Brightness auto-adjusting

DATA DISPLAY FORMAT: Available in percentage terms or in spectrum intensity terms

DATA TRANSMISSION: Spectrometer can connect to your mobile phone app via Bluetooth

COMPUTATIONAL

OPERATING SYSTEM: Win10

DATA STORAGE: 256GB SSD, 4GB LPDDR memory | Cloud storage available

A handheld barcode scanner shown from two angles, with measurements indicating a length of 10 inches, width of 5.5 inches, and height of 8 inches

DETECTABLE SAMPLE ELEMENTS

METALS (listed by atomic mass):

Magnesium (Mg), Aluminum (Al), Titanium (Ti), Vanadium (V), Chromium (Cr), Manganese (Mn), Iron (Fe), Cobalt (Co), Nickel (Ni), Copper (Cu), Zinc (Zn), Zirconium (Zr), Niobium (Nb), Molybdenum (Mo), Ruthenium (Ru), Rhodium (Rh), Palladium (Pd), Silver (Ag), Cadmium (Cd), Tin (Sn), Hafnium (Hf), Tantalum (Ta), Tungsten (W), Rhenium (Re), Iridium (Ir), Platinum (Pt), Gold (Au), Mercury (Hg), Lead (Pb), Bismuth (Bi)

Periodic table of elements showing selected elements with atomic numbers and symbols.

NON-METALS (listed by atomic mass):

Silicon (Si), Phosphorous (P), Sulfur (S), Selenium (Se), Bromine (Br), Antimony (Sb)

A portion of the periodic table showing groups 14 to 17, with elements Silicon (Si), Phosphorus (P), Sulfur (S), Selenium (Se), Bromine (Br), and Antimony (Sb).

Gen 3 Test Data

This test is to verify the accuracy demonstration and consistency demonstration of our instrument.

To ensure the authenticity and validity of the test results, we will use Analytical Reference Materials International with international certification for testing.

The testing video will not be edited except for acceleration.

Analytical Reference Materials International

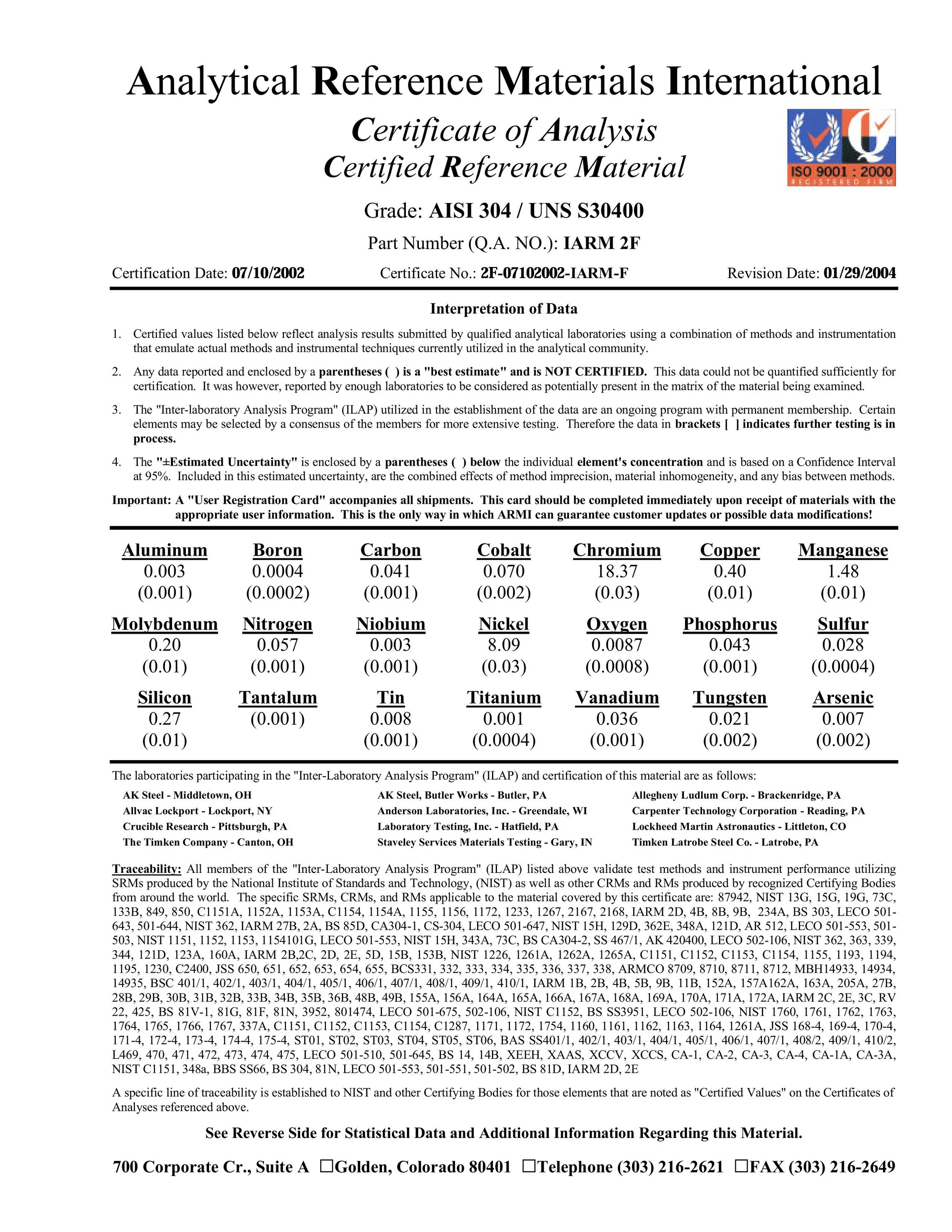

A laboratory analysis certificate from Analytical Reference Materials International, dated October 7, 2002, listing certified analysis values for various elements in aluminum, boron, carbon, cobalt, chromium, copper, manganese, molybdenum, nitrogen, niobium, nickel, oxygen, phosphorus, sulfur, silicon, tantalum, tin, titanium, vanadium, tungsten, arsenic, and other metals, with certification details, traceability information, and contact details for the laboratories involved.

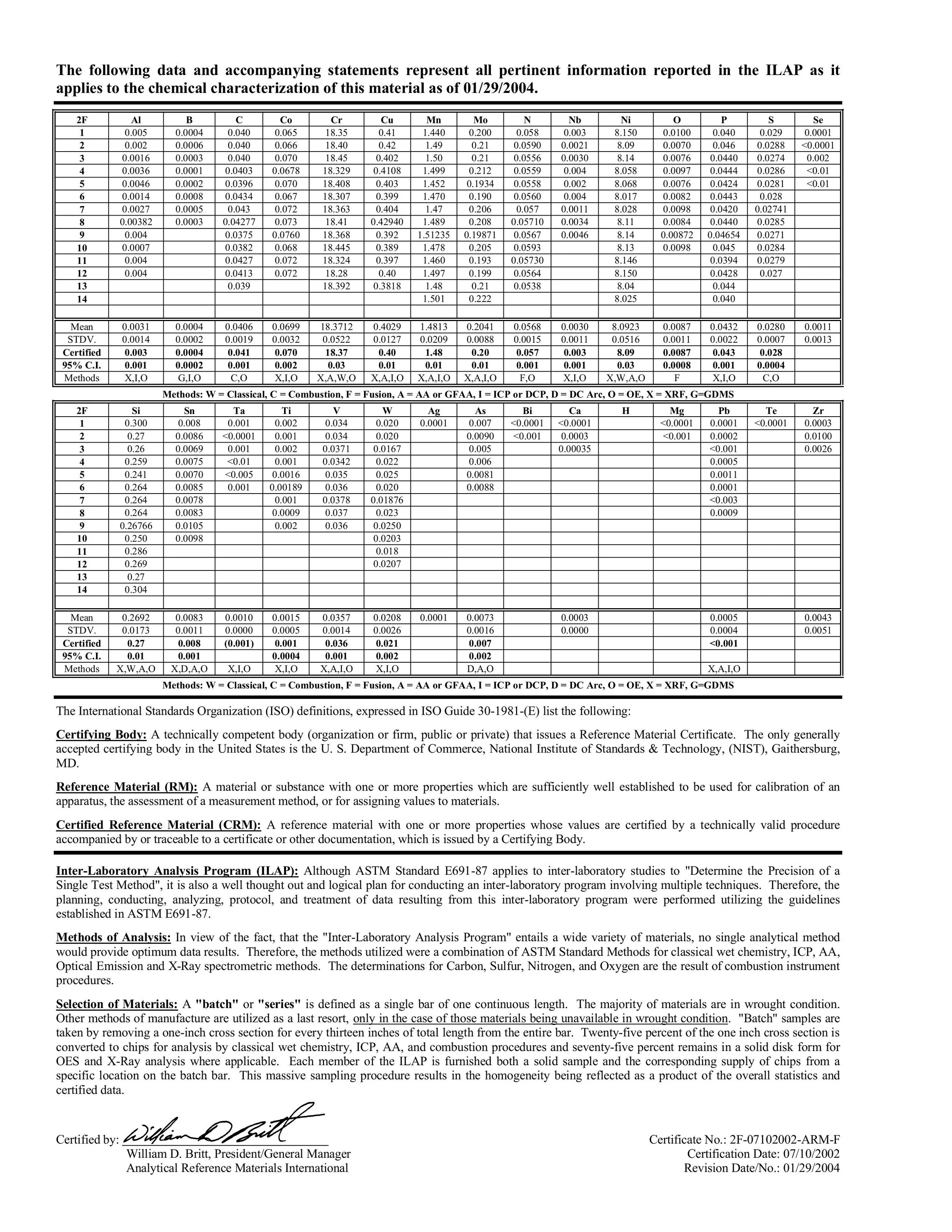

A detailed scientific report page with data tables, text, and signatures from William D. Britt, discussing ASTM standards, calibration techniques, and analysis methods.

Gen 3 Accuracy Demonstration

Test results

Gen 3 Consistency Demonstration

Test results

格式化表格
Element Cr Mn Ni Cu Mo
Benchmark 18.370 1.480 8.090 0.400 0.200
Test 1 18.236 1.380 8.175 0.461 0.224
Test 2 18.226 1.629 8.005 0.472 0.215
Test 3 18.424 1.687 8.153 0.454 0.213
Test 4 18.256 1.615 8.240 0.486 0.220
Test 5 18.342 1.710 8.355 0.428 0.224
Test 6 18.380 1.411 8.038 0.422 0.212
Test 7 17.996 1.489 7.999 0.516 0.214
Test 8 18.021 1.596 7.955 0.585 0.213
Test 9 18.119 1.661 8.182 0.483 0.212
Test 10 18.321 1.406 7.932 0.347 0.213
Average 18.232 1.558 8.104 0.465 0.216
Benchmark Deviation -0.008 0.053 0.002 0.163 0.080
Std. Deviation 0.139 0.119 0.131 0.059 0.005
Std. Dev. % 0.8% 7.6% 1.6% 12.8% 2.1%
